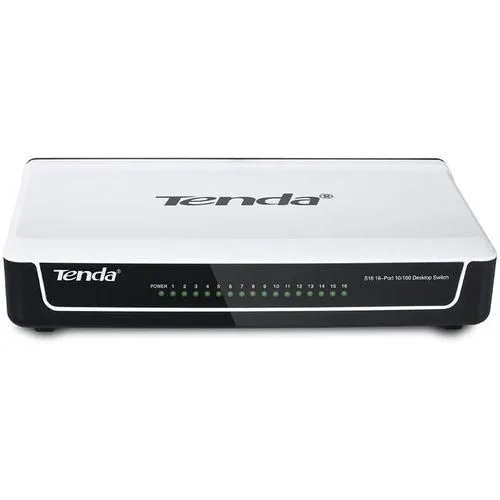

Tenda S16 16-Port 10/100Mbps Desktop Switch Price in Kenya

Tenda S16 16-Port 10/100Mbps Desktop Switch Price in Kenya

The Tenda S16 is an unmanaged Fast Ethernet switch designed to expand wired connectivity in homes, small offices, shops and classrooms. It provides a straightforward way to connect computers, printers and other Ethernet equipment when the existing router has too few LAN ports.

Its 16 auto-sensing 10/100Mbps ports accommodate compatible devices without requiring switch-management software. Connect power, attach the router and local equipment, then check network access. Tenda Global

The S16 is a Fast Ethernet switch, not a Gigabit model. Choose it where the expected traffic fits a 100Mbps connection. For faster internet services or demanding local transfers, assess a Gigabit alternative.

Tenda S16 Price in Kenya

Contact Network Switch Kenya for a quotation for the Tenda S16 16-Port Desktop Switch.

Confirm the hardware revision, supplied power adapter, mounting accessories, warranty terms and delivery arrangements. Include suitable Ethernet cables and installation services where required.

Browse networking equipment at Network Switch Kenya when preparing the installation.

You can also explore Tenda equipment at Tawa and the Tenda product selection at Orbitlink Solutions, checking each model’s specifications independently.

Key Features and Benefits

Add More Wired Connections

The switch expands the number of devices connected to an existing network.

With one port used for the router uplink, 15 ports remain for local equipment. Traffic travelling between those devices and the upstream network shares that uplink’s available capacity.

Simple Plug-and-Play Operation

Ordinary switching requires no administrator account, management address or software configuration. This suits a small, flat network where advanced port controls are unnecessary.

The router continues to provide DHCP, internet routing and firewall protection.

Automatic Connection Settings

Auto-sensing ports negotiate supported connection settings with attached devices. Auto MDI/MDIX simplifies ordinary Ethernet cabling without requiring a dedicated crossover cable.

Compact Placement

The plastic enclosure suits desktop placement where space is limited. Tenda also lists wall-mounting support, while direct rack mounting is not supported for the documented version. Tenda United Arab Emirates

For cabinet installation, use a suitable shelf and preserve ventilation.

Watch the supplied Tenda S16 product video on YouTube

Key Specification

SpecificationTenda S16Switch typeUnmanaged Fast EthernetEthernet interfaces16 × 10/100Mbps RJ45Auto MDI/MDIXSupportedSwitching capacity3.2GbpsPacket forwarding rateApproximately 2.38MppsForwarding methodStore-and-forwardMAC address table4K entriesStandardsIEEE 802.3, 802.3u and 802.3xIndicatorsPower and 16 Link/Activity indicatorsPublished dimensions218 × 135 × 41.6mmEnclosurePlasticSpecified adapter output9V DC, 0.6AAdapter mains input100–240V AC, 50/60HzMountingDesktop or wall; not directly rack-mountableOperating temperature0°C to 45°COperating humidity10–90%, non-condensingPoE outputNoneConfigurable management interfaceNone

Specifications follow Tenda’s published regional information. Confirm the supplied hardware revision and electrical label before installation. Tenda United Arab Emirates

Understanding the 100Mbps Limit

Each port supports a connection rate of up to 100Mbps. Actual application throughput is lower because of protocol overhead and other limitations.

Full-duplex operation allows simultaneous sending and receiving. It does not create a 200Mbps one-direction connection.

The 3.2Gbps switching-capacity figure describes aggregate operation across the switch rather than the speed of an individual port.

When several devices access the internet through one router connection, they share that connection’s capacity. A faster router or internet package cannot remove the S16’s Fast Ethernet limit.

Typical Applications

Small Offices

Connect workstations, printers and other equipment where browsing, document access and business applications fit the available bandwidth.

Assess shared-file traffic before choosing the switch for a busy office.

Shops and Retail Counters

Provide wired connections for compatible tills, printers and office computers. Confirm requirements with the business-software and payment-equipment providers.

Homes and Shared Premises

Expand wired connections for devices whose traffic requirements are modest. Consider a faster switch where several users share high-bandwidth services.

Classrooms

Connect computers in a training room. Include simultaneous downloads and shared-server traffic in capacity planning.

Basic CCTV Connections

Carry camera traffic where the combined load fits the network links. Cameras need separate compatible power because the S16 has no PoE output.

Choosing Complementary Equipment

The S16 distributes an existing network; it does not independently provide an internet connection or Wi-Fi.

The supplied MikroTik Kenya catalogue offers another place to explore complementary routing equipment. Choose a router around the user load and required services.

For faster wired connections, compare the D-Link DGS-F108 Gigabit switch at Network Switch Kenya, noting its smaller port count.

If configurable switching is required, review the MikroTik RB260GS.

How to Set Up the Tenda S16

1. Check the Model and Adapter

Confirm that the label identifies Tenda S16 and inspect the supplied accessories.

Use the adapter specified for the unit. Matching the connector alone does not establish electrical compatibility.

2. Select a Suitable Location

Place the switch on a stable indoor surface with ventilation and cable clearance.

For wall mounting, follow the supplied guide and use suitable fixings. Keep the unit away from moisture and excessive heat.

3. Connect Power

Attach the supplied adapter and connect it to an appropriate outlet.

Check that the power indicator lights. If using backup power, include the router and service equipment where internet continuity is required.

4. Connect the Router

Connect a router LAN port to any switch port using a suitable Ethernet cable.

Keep the router’s WAN connection attached to the internet service. Begin with one uplink.

5. Attach Local Devices

Connect computers, printers and other equipment to the remaining ports.

Provide separate power for cameras or access points requiring PoE. The S16 does not supply it.

6. Check Addressing

Most computers should obtain network settings from the router’s DHCP server.

The switch needs no management IP address. Configure static endpoint addresses only where the network plan requires them.

7. Test Connectivity

Verify access to the router, internet and shared resources. Check link indicators and try a known-working cable if a connection fails.

8. Avoid Network Loops

Do not add parallel cables between switches without an appropriate design. Extra cables do not automatically increase capacity and can disrupt the network.

9. Label the Connections

Label cable destinations and record port assignments. Avoid sharp bends, tension and tangled cable bundles.

Troubleshooting

ProblemChecks to makeNo power indicatorOutlet, adapter and power connectionNo Ethernet linkCable, connectors and endpoint interfaceNo internet accessRouter uplink, DHCP and upstream serviceSlow transfersFast Ethernet limit, shared traffic and endpoint performanceCamera does not startSeparate compatible power sourceNetwork disruption after adding a cablePossible loop or incorrect connection

Advantages

• Numerous connections for basic wired expansion.
• Straightforward plug-and-play operation.
• Compact desktop enclosure.
• Automatic connection negotiation.
• No management software required.
• Wall-placement option on the documented version.

Disadvantages and Limitations

• Limited to 100Mbps per port.
• No separate high-speed uplink.
• No PoE output.
• No configurable VLANs or port controls.
• One router uplink leaves 15 local-device connections.
• No direct rack mounting on the documented version.
• Less suitable for demanding modern workloads.

Package Contents

Confirm that the seller supplies the switch, correct power adapter and documentation.

Ethernet cables, wall fixings and installation materials should be itemized separately where required.

Frequently Asked Questions

Is the Tenda S16 a Gigabit switch?

No. Its interfaces support 10/100Mbps.

Does it need software setup?

No. Ordinary switching is plug-and-play.

Can it provide Wi-Fi?

No. Connect a separate wireless access point.

Can it power PoE devices?

No. Use compatible injectors, a PoE switch or another approved source.

Does it increase internet speed?

It cannot increase the service supplied by your provider and can limit faster connections to its port capacity.

Order from Network Switch Kenya

Contact Network Switch Kenya for a quotation. Include your device count and traffic requirements so the switch’s suitability can be assessed.
