Who is this switch best for?
- Office LAN expansion
- CCTV and IP camera networks
- WiFi access point connectivity
Works with standard Ethernet networking equipment including routers, computers, IP cameras, access points and servers. Confirm port, PoE and mounting requirements before purchase.
Check the product label or manufacturer datasheet for exact input voltage, power adapter and PoE requirements.

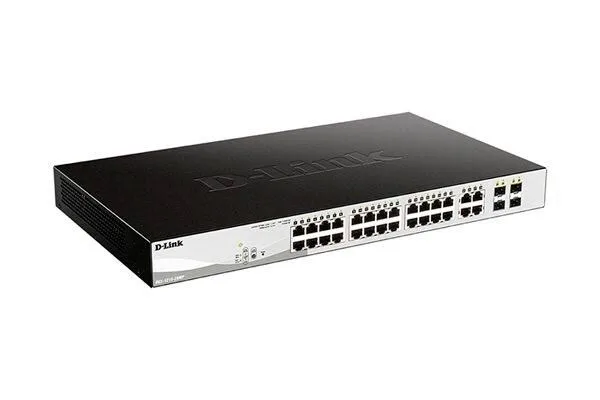

The D-Link DGS-1210-28P combines Gigabit connectivity, PoE+ power and managed network controls for offices, schools, hotels, retail premises and surveillance installations. It provides a central connection point for compatible cameras, access points and IP phones alongside ordinary Ethernet equipment.
Its 24 Gigabit PoE ports and four additional Gigabit RJ45/SFP combo interfaces offer flexibility for endpoints and upstream links. A 193W shared PoE budget supports compatible powered devices through their Ethernet cables. D-Link
Request the current D-Link DGS-1210-28P price in Kenya from Network Switch Kenya, including suitable optical modules, cabling and installation services.
The DGS-1210-28P belongs to D-Link’s Smart Managed range. It suits installations requiring configurable network segmentation, traffic controls and visibility beyond basic unmanaged switching.
The four uplink interfaces are combo connections. Each provides a choice between its associated copper connector and SFP slot; the two connectors are not independent simultaneous ports. The switch therefore supports 28 active data interfaces, rather than 32.
Also distinguish the DGS-1210-28P from the DGS-1210-28MP, which has a different power budget. Confirm the complete model and hardware revision before ordering.
Specifications follow D-Link’s product page and Fx-series datasheet. Confirm revision-dependent details against the supplied unit. D-Link
PoE simplifies cabling by supplying electricity and data through one Ethernet cable. This can reduce the need for separate adapters beside ceiling-mounted access points, corridor cameras and desk phones.
Compatibility depends on the endpoint’s required standard and maximum consumption. Passive-PoE equipment and devices requiring higher-power delivery may need another source.
The available budget must cover the complete powered-device load, not simply the number of connected units.
Gigabit Connectivity Across the Access NetworkGigabit connections support appropriately equipped endpoints and shared resources.
Actual throughput depends on cable quality, endpoint adapters, upstream capacity and application workload. The switch cannot increase the speed provided by an internet subscription.
Flexible Copper or Fiber UplinksCombo interfaces allow installers to choose the appropriate connection medium.
Copper may suit nearby equipment, while fiber can serve locations where distance or infrastructure makes an optical link preferable. Select compatible transceivers and match the fiber type, wavelength, connectors and link distance.
Configurable Network OrganizationManaged controls support a planned network structure where equipment groups need different connectivity.
For example, staff computers, cameras and guest access may belong to separate segments. Addressing, routing and access policies must also be configured on the appropriate equipment.
Static Routing Where RequiredStatic routing can support communication between defined network segments, but it must be designed deliberately.
Determine which device provides routing and security policies. A switch’s routing capability does not replace a complete internet firewall.
Surveillance-Oriented AdministrationThe supported surveillance interface can be useful for installations focused on cameras and recording equipment. Available functions depend on hardware and software.
A surveillance-oriented interface does not replace camera activation, recorder configuration or a properly sized recording system.
Connect workstations, printers, compatible phones and access points.
An upstream router or gateway provides internet access and the required security services.
Hotels and GuesthousesBring selected wireless, telephone and surveillance connections together.
Plan the number of powered endpoints, their maximum demand and the required separation between guest and operational networks.
Schools and Training FacilitiesSupport administrative equipment, access points and cameras from a central equipment location.
Allow capacity for future devices and confirm that the upstream network can handle expected simultaneous activity.
Retail and Commercial PremisesConnect suitable business equipment according to the organization’s network plan.
Payment systems and other sensitive applications should follow the requirements of the complete network and service provider.
IP SurveillanceCentralize compatible camera connections while linking to the recording network through an appropriate uplink.
Check recorder channel count, incoming bandwidth and storage separately. Having enough switch ports does not establish recording capacity.
The shared allowance is a total limit. It does not mean that every powered port can deliver its individual maximum simultaneously.
Hypothetical device loadCombined demand before cable losses16 cameras consuming 8W each128W12 cameras at 8W plus 4 access points at 15W156W24 devices consuming 10W each240WThe final example exceeds this model’s stated budget. These figures are planning illustrations, not guaranteed supported combinations.
Use maximum consumption, account for cable losses and leave headroom. Night illumination, heaters and other endpoint features may raise demand beyond the level observed during initial setup.
For a different managed platform, compare the MikroTik CRS326-24G-2S+RM at MikroTik Kenya, checking its power and interface requirements separately.
Read the complete model and revision from the label. Obtain matching documentation and firmware.
For previously configured equipment, preserve the existing settings before changing anything. Avoid resetting an installed switch merely because the management address is unknown.
2. Prepare the Network PlanDocument endpoint connections, maximum power demand, VLANs, upstream links and management addressing.
Identify which device will supply DHCP, routing and firewall policies. Prepare tested Cat5e or Cat6 cabling and compatible optical accessories.
3. Install the SwitchUse the mounting arrangement specified for the supplied hardware. Support cable weight and keep ventilation paths clear.
Allow access for maintenance and consider cooling-fan noise when locating equipment near occupied rooms.
4. Connect PowerConnect the correct mains cable to a suitable supply.
Where backup operation is required, size a UPS for the switch, powered endpoints, router and recorder as applicable. The complete system must remain powered for the service to continue.
5. Establish Initial Management AccessD-Link’s Revision F manual documents a factory address of 10.90.90.90, with subnet mask 255.0.0.0. For an isolated initial connection, a computer could use an unused address such as 10.90.90.91/8.
Open the documented management address in a browser. The referenced manual specifies an initial password of admin; follow the login procedure for the exact revision and change default credentials immediately. support.dlink.com
Avoid using the factory address on a network where another device already occupies it.
6. Secure the Management ConfigurationAssign a predictable management address that fits the network.
Restrict administration to authorized users and appropriate network locations. Keep a recovery connection available before changing management addressing or VLAN membership.
7. Review FirmwareUse firmware intended for the exact model, revision and region.
Back up the current configuration, review upgrade instructions and maintain stable power. Schedule changes when a brief interruption is acceptable.
8. Configure VLANsFor a typical segmented installation:
Test management access and endpoint connectivity before applying the arrangement across the whole installation.
9. Configure PoE AllocationConnect powered equipment gradually and check the available budget.
Use documented power priorities where appropriate so essential devices receive the intended treatment during an overload. Do not rely on priorities to compensate for an undersized system.
10. Connect Upstream EquipmentUse the selected copper or optical side of each combo interface.
Confirm link establishment and expected speed at both ends. Configure supported aggregation or loop prevention before adding parallel connections.
11. Apply Additional Controls CarefullyConfigure traffic priorities, monitoring and security functions according to the actual design.
If using static routing, verify endpoint gateways, return routes and access policies. Test both permitted and restricted communication.
12. Save and Back UpD-Link documents Save → Save Configuration for retaining settings. Applying individual changes is not a substitute for completing the permanent-save procedure. D-Link
Export a backup and store it securely.
13. Test Under Full LoadCheck cameras, phones, wireless clients and local resources simultaneously.
Test camera night operation where relevant. Record port assignments, module models and maximum power requirements before handover.
For a UniFi installation, review the UniFi Standard 24 PoE and UniFi Pro 24 PoE. Compare powered-port counts, budgets, uplinks and management requirements.
Orbitlink Solutions also lists the USW-24-PoE and USW-Pro-24-PoE.
Where integrated power is unnecessary, assess the UniFi Standard 24 or UniFi Pro 24 as different options.
If the installation only needs basic wired expansion, compare the TP-Link TL-SG1024D at Orbitlink Solutions and D-Link DGS-1024D at Tawa. Tawa also has a 24-port Gigabit switch listing; confirm the exact model.
Reisen SEO lists the TP-Link TL-SG1024, TL-SG1024D and D-Link DGS-1024D.
These should be assessed as different choices when management and integrated power are not required. You can also explore the TP-Link TL-SG1024 on Network Switch Kenya.
For applications specifically suited to Fast Ethernet, review the TP-Link TL-SF1024D at Orbitlink Solutions or TL-SF1024 at Tawa.
Tawa also lists the D-Link DES-1024D unmanaged switch and a separate DES-1024D desktop listing.
Additional comparisons include the DES-1024D at Reisen SEO and TP-Link TL-SF1024. Check speeds, management and power capabilities rather than treating all 24-port switches as equivalent.
Confirm that the quotation includes the correct mains cable, mounting brackets and documentation.
Specify SFP modules, fiber leads, Ethernet cables, UPS equipment and installation services separately unless expressly included. Verify product condition and warranty coverage before ordering.
It has 24 powered endpoint connections and four additional combo interfaces, supporting up to 28 active data connections.
Are the SFP slots independent of their paired RJ45 connectors?No. Each combo pair represents one logical interface.
Can all 24 ports deliver maximum power simultaneously?Not necessarily. The combined load must remain within the shared budget.
Is it the same as the DGS-1210-28MP?No. The MP model has a different power budget.
Can it power equipment from other brands?Yes, where PoE standards and power requirements are compatible and enough shared power remains available.
Does it replace an internet firewall?No. Plan suitable gateway and security equipment for the installation.
Contact Network Switch Kenya for a quotation on the D-Link DGS-1210-28P Gigabit PoE+ Smart Switch. Share your powered-device count, maximum demand and uplink plan to confirm the right equipment and accessories.
D-Link DGS-1210-28P 24-Port Gigabit PoE+ Smart Switch Price in Kenya is currently listed as available. Stock can change, so confirm availability before placing a large order.
The current listed price is KSh 35,000.00. Prices are generated from the product catalogue and may change when inventory is updated.
