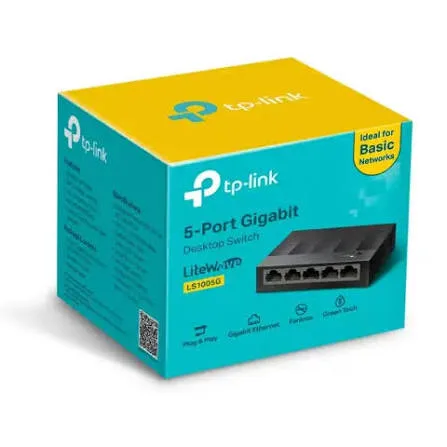

TP-Link LS1005G 5-Port Gigabit Desktop Switch Price in Kenya

TP-Link LS1005G 5-Port Gigabit Desktop Switch Price in Kenya

The TP-Link LS1005G is a compact switch for adding wired connections to a home, small office, shop or entertainment area. Its five Gigabit Ethernet ports connect computers, printers, smart TVs, gaming consoles and other Ethernet devices to an existing network.

Its unmanaged design makes installation straightforward: connect it to a configured router, attach your devices and start using the network. The compact plastic enclosure supports desktop or wall placement, while fanless cooling keeps operation quiet.

Browse Network Switch Kenya and request a quotation for the LS1005G, confirming the hardware version, supplied adapter, warranty and delivery arrangements.

Media link

Key Specification

SpecificationDetailsBrandTP-LinkModelLS1005GProduct rangeLiteWaveSwitch typeUnmanaged Gigabit EthernetEthernet ports5 × 10/100/1000Mbps RJ45Port functionsAuto-negotiation and Auto MDI/MDIXSwitching capacity10GbpsPacket forwarding rate7.4 million packets per secondMAC address table2K entriesForwarding methodStore-and-forwardFlow controlIEEE 802.3xCoolingFanlessEnclosurePlasticPlacementDesktop or wall mountingV3 dimensions90 × 72 × 23mmV3 adapter output5V DC, 0.6AOperating temperature0°C–40°CPoE outputNoSFP/SFP+ slotsNoneMaximum individual port speed1Gbps

Specifications follow TP-Link’s documentation, with physical and adapter details identified for V3. Confirm the supplied revision before ordering. The 10Gbps switching capacity describes aggregate capacity; each port supports up to 1Gbps. TP-Link Australia

Features and Practical Benefits

Add Connections Where You Need Them

The LS1005G is useful when your router has too few LAN ports or when several devices share one Ethernet outlet.

For example, connect the switch to an existing wall outlet, then attach a computer, printer and other equipment nearby. Check that the wall outlet connects to your intended LAN.

One uplink uses one of the five ports, leaving four for other devices.

Gigabit Connectivity for Local Transfers

Gigabit Ethernet provides more connection capacity than 100Mbps Fast Ethernet. It can help when moving files between suitable computers or accessing shared storage.

Performance still depends on cable quality, endpoint capabilities, storage speed and other traffic. Installing the switch does not increase internet speed beyond your ISP service.

Straightforward Operation

The unmanaged design suits users who want additional connections without configuring a switch-management interface. Your router continues handling IP addressing, internet access and firewall protection.

If you need configurable VLANs, detailed monitoring or administrative access controls, choose a suitable managed switch.

Compact and Quiet Placement

The small desktop format fits easily into a workspace or entertainment area. Fanless cooling avoids cooling-fan noise.

Keep ventilation openings clear, leave space for cables and avoid locations exposed to moisture or excessive heat.

For another five-port option, compare the supplied TP-Link TL-SG1005D listing at Orbitlink Solutions. It is a separate model, so confirm the exact product when ordering.

Suitable Applications

Home Offices

Connect a computer, network printer and other Ethernet equipment through one nearby connection. This can simplify a workspace where wireless connectivity is inconsistent or wired connections are preferred.

Entertainment Areas

Provide Ethernet connections for compatible smart TVs, gaming consoles and streaming devices. Actual streaming and download performance depends on the internet service and each device’s capabilities.

Small Shops

Connect compatible POS terminals, printers and administrative equipment. Follow your business-system provider’s requirements for addressing and application access.

Where payment systems and guest devices need enforced separation, use an appropriate managed network design.

Small Groups of Office Devices

The LS1005G can expand connectivity around a desk cluster. Allow spare ports for future equipment rather than using every connection immediately.

If four available device ports are insufficient after the uplink, consider the TP-Link TL-SG1008D eight-port Gigabit switch.

Cameras and Access Points with Separate Power

The switch can carry data for compatible network cameras and access points. These devices need suitable separate power supplies or injectors.

For an installation requiring Ethernet power and network management, assess the supplied UniFi Enterprise 8 PoE listing. Confirm its power compatibility and management requirements separately.

How to Set Up the TP-Link LS1005G

1. Prepare Your Equipment

Gather:

• The LS1005G and its supplied power adapter.
• Cat5e or Cat6 Ethernet cables.
• A configured router or an Ethernet outlet connected to your LAN.
• A suitable desktop location or wall fixings.
• Cable labels where needed.

Use properly terminated cables with all four wire pairs connected for Gigabit Ethernet. Keep each standard copper Ethernet channel within 100 metres.

2. Check the Model and Adapter

Read the model and hardware-version label on the switch.

Use the supplied adapter that matches the unit’s voltage, polarity and current requirements. Do not substitute an adapter simply because its connector fits.

3. Position the Switch

Place it on a stable surface with room for ventilation and cable access.

For wall placement, follow the supplied installation guide and use suitable fixings. Avoid tightly bending cables or positioning the unit where they may be pulled accidentally.

The LS1005G is a compact desktop device; it does not provide standard rackmount installation.

4. Connect Power

Connect the correct adapter to the switch and a suitable mains outlet. Check that the power indicator illuminates.

If backup operation matters, include the router and essential connected devices in your power plan.

5. Connect the Upstream Network

Connect a router LAN port or a correctly connected network wall outlet to any available switch port.

The router should already provide working internet access. For a typical home or small-office installation, it also assigns addresses through DHCP.

The supplied MikroTik hEX PoE lite RB750UPr2 has 10/100Mbps Ethernet ports. An uplink to that router therefore has a maximum link speed of 100Mbps. Suitable devices communicating directly through the LS1005G can still use Gigabit connections. cdn.mikrotik.com

For internet services above 100Mbps, assess a router with suitable Gigabit interfaces and routing performance.

6. Connect Your Devices

Attach computers, printers, TVs or other Ethernet equipment to the remaining ports.

PoE-powered devices require suitable separate injectors or a PoE switch. The LS1005G does not distribute power received from another networking device.

7. Confirm Addressing

Set computers to obtain IP addresses automatically where the router provides DHCP.

For equipment requiring consistent addresses, use DHCP reservations or a suitable static-address plan. Avoid duplicate addresses.

The switch does not need a management IP address for ordinary operation.

8. Check Link Speeds

Inspect the negotiated speed in a connected computer’s network settings.

If a Gigabit-capable device connects at only 100Mbps:

1. Try a known-good Cat5e or Cat6 cable.
2. Inspect plugs and wall-outlet terminations.
3. Confirm that all four wire pairs are connected.
4. Check the network adapter’s capabilities and settings.
5. Test another switch port.

Leave automatic negotiation enabled unless a specific troubleshooting requirement justifies changing it.

9. Test Connectivity

Confirm that a computer can reach the router, access the internet and communicate with permitted local devices.

Use a local file transfer between suitable endpoints when assessing LAN performance. An internet speed test mainly measures the ISP connection and upstream path.

10. Avoid Cable Loops

Do not connect two LS1005G ports directly together. Avoid adding duplicate links between switches unless the network is designed to support them.

Use one planned uplink for a straightforward installation and label it clearly.

Advantages

• Gigabit connections: Suitable for many everyday home and office tasks.
• Simple setup: Requires little configuration.
• Compact size: Convenient for desks and entertainment areas.
• Quiet operation: Fanless cooling avoids fan noise.
• Flexible connections: Accommodates compatible older Ethernet equipment.

Disadvantages

• Limited expansion: Only four device ports remain after one uplink.
• No PoE: Cameras, phones and access points need separate power.
• No fibre interfaces: Direct SFP connections are unavailable.
• Limited management: No configurable VLANs or detailed monitoring.
• 1Gbps port ceiling: Faster devices cannot establish multi-gigabit links through it.
• Indoor desktop design: Requires suitable placement and an external power adapter.

For a larger group of devices, compare the TP-Link TL-SG1016D 16-Port Gigabit Switch.

Package Contents

TP-Link lists the following:

• LS1005G switch.
• Power adapter.
• Installation guide.

Confirm the package, adapter rating and regional plug type for the supplied revision. Ethernet cables and the router should be budgeted separately unless your quotation includes them. TP-Link Australia

Frequently Asked Questions

Are all five ports Gigabit-capable?

Yes. They support 10/100/1000Mbps connections, subject to the connected equipment and cables.

Can I connect five devices alongside a router?

The router connection uses one port, leaving four for other equipment.

Does it provide Wi-Fi?

No. Wireless coverage requires a separate access point or wireless router.

Can it power an IP camera?

No. Use a suitable separate power supply, compatible injector or PoE switch.

Does it require software installation?

No switch-management software is required for ordinary operation.

Is the LS1005G the same as the TL-SG1005D?

No. They are different model numbers. Specify LS1005G when ordering.

Will a 100Mbps router limit local Gigabit transfers?

It limits traffic crossing the router uplink. Suitable devices connected directly to the switch can still communicate over Gigabit links.

Order the TP-Link LS1005G in Kenya

Expand connectivity for a small group of devices with the TP-Link LS1005G 5-Port Gigabit Desktop Switch from Network Switch Kenya.

Request a quotation confirming the hardware revision, adapter, warranty and delivery arrangements. Choose a larger or managed model if your installation needs more ports or additional controls.
