TP-Link TL-SF1005D 5-Port 10/100Mbps Desktop Switch Price in Kenya

TP-Link TL-SF1005D 5-Port 10/100Mbps Desktop Switch Price in Kenya

The TP-Link TL-SF1005D is a compact switch for adding wired connections to a home office, small shop or workspace. Its five Fast Ethernet ports connect computers, printers and other Ethernet equipment to an existing network with minimal installation work.

Its unmanaged design means ordinary operation does not require switch configuration. Connect it to a configured router, attach your devices and continue managing internet access and addressing through the router.

The TL-SF1005D suits installations where 100Mbps connections meet the workload. For faster internet services, large file transfers or shared storage, consider a Gigabit alternative.

View the TP-Link TL-SF1005D at Network Switch Kenya and request a quotation confirming the hardware revision, supplied adapter, warranty and delivery arrangements.

Key Specification

SpecificationDetailsBrandTP-LinkModelTL-SF1005DSwitch typeUnmanaged Fast EthernetEthernet ports5 × 10/100Mbps RJ45Automatic port functionsAuto-negotiation and Auto MDI/MDIXPublished switching capacity1Gbps aggregateForwarding methodStore-and-forwardFlow controlIEEE 802.3xCoolingFanlessEnclosurePlasticPlacementDesktopPublished dimensions103.5 × 70 × 22mmV18 adapter output5V DC, 0.6AV18 maximum power consumption1.87W at 220V/50HzOperating temperature0°C–40°CPoE outputNoGigabit portsNoneSFP/SFP+ interfacesNone

Physical and electrical figures follow TP-Link’s V18 documentation; the aggregate switching figure comes from its series datasheet. Confirm the supplied revision before purchase. A 1Gbps aggregate switching capacity does not make this a Gigabit switch—each port remains limited to 100Mbps. TP-Link Australia

Features and Practical Benefits

Add Connections Near Your Equipment

The TL-SF1005D is useful when your router has insufficient available LAN ports or when several devices need to share one Ethernet wall outlet.

For example, you can place it near a computer and network printer, connecting both through one upstream cable.

One connection to the router or upstream network leaves four ports for other devices. Include this uplink when calculating capacity.

Straightforward Operation

The unmanaged design suits users who mainly need additional wired connections. Your router continues providing DHCP addressing, internet access and firewall protection.

It is a practical option for a basic LAN, but installations requiring configurable VLANs, detailed monitoring or access controls need a suitable managed switch.

Compact and Quiet Placement

The small plastic enclosure takes up little desktop space. Fanless cooling avoids cooling-fan noise, making it convenient near occupied workspaces.

Leave room for cables and ventilation. Keep it away from moisture, excessive heat and locations where connected cables may be pulled accidentally.

Compatible with Existing Fast Ethernet Equipment

The switch supports compatible devices operating at 10Mbps or 100Mbps. It can therefore serve existing printers, computers and other equipment whose applications do not require faster connections.

The supplied TP-Link TL-SG1005D listing at Orbitlink Solutions is a different, Gigabit model to compare if your speed requirements are higher.

Where Can You Use the TL-SF1005D?

Home Offices

Connect a computer, printer and other Ethernet devices through one nearby network connection. Check internet and local-transfer requirements before selecting Fast Ethernet.

Small Shops

Connect compatible POS terminals, printers and administrative equipment. Follow your business-system provider’s requirements for addressing and application access.

Where payment equipment and guest devices need enforced separation, use an appropriate managed network design.

Existing Low-Traffic Networks

The switch can expand an installation whose equipment already operates satisfactorily at Fast Ethernet speeds.

Consider future requirements before purchasing. New storage systems or faster internet packages may justify a Gigabit switch.

Separately Powered Network Devices

The TL-SF1005D can carry data for compatible cameras and access points, provided they receive appropriate separate power.

For an installation requiring Ethernet power and network management, assess the supplied UniFi Enterprise 8 PoE listing. Confirm its power compatibility and management requirements separately.

How to Set Up the TP-Link TL-SF1005D

1. Prepare Your Equipment

Gather:

• The switch and its supplied power adapter.
• Cat5e or Cat6 Ethernet cables.
• A configured router or a wall outlet connected to your LAN.
• A stable desktop location.
• Cable labels where useful.

Keep each standard copper Ethernet channel within 100 metres. Inspect damaged plugs and cables before installation.

2. Check the Hardware Version and Adapter

Read the model and hardware-version information on the switch label.

Use the supplied adapter matching the unit’s required voltage, polarity and current rating. Do not substitute an adapter simply because its connector fits.

3. Position the Switch

Place it on a stable surface with room for ventilation and cable access.

Avoid covering the unit or placing it beside equipment that produces excessive heat. Support cables so their weight does not pull on the ports.

If placed inside a cabinet, use a suitable shelf rather than assuming it includes rackmount brackets.

4. Connect Power

Connect the correct adapter to the switch and a suitable mains outlet. Check that the power indicator illuminates.

If continued operation during outages matters, provide backup power for the router and essential connected equipment as well as the switch.

5. Connect the Upstream Network

Connect a router LAN port or a correctly connected Ethernet wall outlet to an available switch port.

The router should already have working internet access. For a typical home or small-office network, it also assigns addresses through DHCP.

The supplied MikroTik hEX PoE lite RB750UPr2 is a router option to assess separately. Its Ethernet interfaces are also 10/100Mbps. cdn.mikrotik.com

Using a faster router would not increase the TL-SF1005D’s port speeds beyond 100Mbps.

6. Connect Your Devices

Attach computers, printers and other Ethernet equipment to the remaining ports.

PoE-powered devices require suitable separate injectors or a PoE switch. The TL-SF1005D does not distribute power received from an upstream networking device.

7. Confirm IP Addressing

Set computers to obtain addresses automatically if your router provides DHCP.

Use DHCP reservations or a suitable static-address plan for equipment requiring consistent addresses. Avoid duplicate IP addresses.

The switch does not require a management IP address for ordinary operation.

8. Check the Connections

Check the link indicators and confirm the negotiated speed in a connected computer’s network settings.

A 100Mbps connection is normal. If a compatible device connects at only 10Mbps, try another cable and check the plugs, wall-outlet terminations and network-adapter settings.

Leave automatic negotiation enabled unless a specific troubleshooting requirement justifies changing it.

9. Test Network Access

Confirm that a connected computer can:

1. Reach the router.
2. Access the internet where available.
3. Communicate with permitted local devices.
4. Print or use the required business application.

An internet speed test measures the upstream service as well as the local connection. Use a local transfer between suitable devices when assessing LAN performance.

10. Avoid Cable Loops

Do not connect two switch ports directly together. Avoid duplicate paths between switches unless the network is designed to support them.

For a straightforward installation, use one planned uplink and label it clearly.

Advantages

• Simple installation: Requires little configuration for normal use.
• Compact format: Convenient for small workspaces.
• Quiet operation: Fanless cooling avoids fan noise.
• Useful expansion: Adds connections for a small group of devices.
• Suitable for existing equipment: Practical where Fast Ethernet meets the workload.

Disadvantages

• 100Mbps port limit: Restricts faster internet access and large local transfers through the switch.
• Limited port count: Four device ports remain after one uplink.
• Shared uplink capacity: Devices using the router connection share its available bandwidth.
• No PoE: Cameras, phones and access points need separate power.
• Limited management: No configurable VLANs or detailed monitoring interface.
• No fibre interfaces: Direct SFP connections are unavailable.

For higher-speed networking, compare the TP-Link TL-SG1005D 5-Port Gigabit Switch. If more Fast Ethernet connections are needed, consider the TP-Link TL-SF1008D eight-port switch.

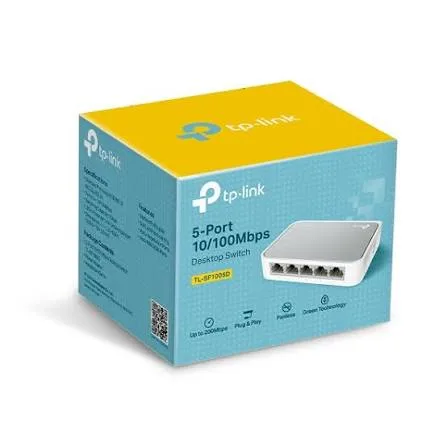

Package Contents

TP-Link lists:

• TL-SF1005D switch.
• Power adapter.
• Installation guide.

Confirm the supplied package, adapter rating and regional plug type. Ethernet cables and the router should be budgeted separately unless your quotation includes them. static.tp-link.com

Frequently Asked Questions

Is the TL-SF1005D a Gigabit switch?

No. Its ports support 10/100Mbps. The TL-SG1005D is a separate Gigabit model.

Can Gigabit-capable computers connect?

Yes, where their adapters support negotiation to 100Mbps. They will operate at the switch’s supported speed.

Can I connect five computers and a router?

The router connection uses one port, leaving four for computers or other equipment.

Does it provide Wi-Fi?

No. Wireless connectivity requires a separate access point or wireless router.

Can it power an IP camera?

No. Use a suitable separate power supply, compatible injector or PoE switch.

Does full duplex mean a 200Mbps connection?

A 100Mbps full-duplex link can send and receive simultaneously at up to 100Mbps in each direction. It does not provide a 200Mbps one-way connection. static.tp-link.com

Order the TP-Link TL-SF1005D in Kenya

Expand connectivity for a small group of devices with the TP-Link TL-SF1005D 5-Port 10/100Mbps Desktop Switch from Network Switch Kenya.

Request a quotation confirming the hardware revision, adapter, warranty and delivery arrangements. Browse Network Switch Kenya for Gigabit, managed and PoE alternatives.
