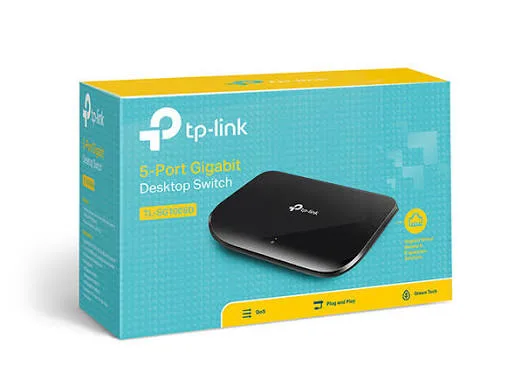

TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch Price in Kenya

TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch Price in Kenya

The TP-Link TL-SG1005D provides a simple way to add wired connections to a home office, small business or entertainment area. Its five Gigabit Ethernet ports connect computers, printers, smart TVs, gaming consoles and other Ethernet equipment to an existing network.

Its unmanaged design makes everyday installation straightforward. Connect the switch to a configured router, attach your devices and continue managing internet access and addressing through your router.

The compact desktop format suits locations where only a few additional connections are needed. View the TP-Link TL-SG1005D at Network Switch Kenya and request a quotation confirming the hardware version, supplied adapter, warranty and delivery arrangements.

Media link

Key Specification

SpecificationDetailsBrandTP-LinkModelTL-SG1005DSwitch typeUnmanaged Gigabit EthernetEthernet ports5 × 10/100/1000Mbps RJ45Automatic port functionsAuto-negotiation and Auto MDI/MDIXPublished switching capacity10GbpsForwarding methodStore-and-forwardFlow controlIEEE 802.3xCoolingFanlessEnclosurePlasticPlacementDesktop or wall mountingPublished dimensions140 × 88 × 23mmPower arrangementExternal adapter; confirm rating for supplied revisionOperating temperature0°C–40°CPoE outputNoSFP/SFP+ interfacesNoneMaximum individual port speed1Gbps

These specifications follow TP-Link’s product documentation. The 10Gbps switching capacity is an aggregate figure; each individual Ethernet port supports up to 1Gbps. TP-Link United Kingdom

Power-adapter differences: TP-Link’s V7 datasheet lists a 9V DC adapter, while its V9 product page lists 5V DC. Use the adapter specified for the actual unit rather than assuming different revisions have interchangeable power supplies. static.tp-link.com

Features and Practical Benefits

Add Connections Near Your Devices

The TL-SG1005D is useful when a router has too few available LAN ports or when several devices need to share one Ethernet wall outlet.

For example, connect the switch to an outlet in your office, then attach a computer, printer and other equipment nearby. Confirm that the outlet connects to your intended LAN.

One upstream connection uses one port, leaving four for other devices.

Gigabit Connectivity for Local Transfers

Gigabit Ethernet provides more connection capacity than 100Mbps Fast Ethernet. This can help when transferring files between suitable computers or accessing network storage.

Actual performance depends on cable quality, endpoint capabilities, storage speed and other traffic. A Gigabit switch does not increase internet speed beyond your ISP service.

Straightforward Operation

Normal switching does not require a management interface or controller adoption. Your router continues handling DHCP addressing, internet access and firewall protection.

This makes the TL-SG1005D suitable for users whose main requirement is adding a few wired connections.

The supplied TL-SG1005D listing at Orbitlink Solutions provides another product reference for this exact model.

Quiet Desktop Placement

Fanless cooling avoids cooling-fan noise, which is useful around desks and entertainment equipment. Leave ventilation openings clear and provide space for cable access.

Wall mounting can keep the unit away from a busy surface. Follow the supplied guide and use suitable fixings.

Traffic Prioritisation on Supported Versions

TP-Link documents 802.1p/DSCP QoS for V7 and later versions. This supports handling of appropriately marked traffic, but does not provide a full managed-switch interface or guarantee application performance when a connection is overloaded. TP-Link United Kingdom

Suitable Applications

Home Offices

Connect a computer, network printer and other Ethernet equipment through one nearby network connection. Wired connections can be convenient where Wi-Fi coverage is inconsistent.

Entertainment Areas

Provide Ethernet connections for compatible TVs, gaming consoles and streaming devices. Download and streaming performance still depends on the internet service and each device’s capabilities.

Small Shops and Service Businesses

Connect compatible POS equipment, printers and administrative computers. Follow your business-system provider’s requirements for addressing and application access.

If payment equipment, staff systems and guest devices need enforced separation, choose an appropriate managed network design.

Small Groups of Office Devices

The switch can expand connectivity around a small desk cluster. Allow spare ports for future equipment rather than using every connection immediately.

If four available device ports are insufficient after the uplink, compare the TP-Link TL-SG1008D eight-port Gigabit switch.

Cameras and Access Points with Separate Power

The TL-SG1005D can carry Ethernet data for compatible network cameras and access points. These devices need suitable separate power supplies or injectors.

For installations requiring network management and Ethernet power, assess the supplied UniFi Enterprise 8 PoE listing. Confirm its power compatibility and management requirements separately.

How to Set Up the TP-Link TL-SG1005D

1. Prepare Your Equipment

Gather:

• The switch and its supplied power adapter.
• Cat5e or Cat6 Ethernet cables.
• A configured router or an Ethernet outlet connected to your LAN.
• A suitable desktop location or wall fixings.
• Cable labels where needed.

Use properly terminated cables with all four wire pairs connected for Gigabit Ethernet. Keep each standard copper Ethernet channel within 100 metres.

2. Check the Hardware Version and Adapter

Read the model and hardware-version label on the switch.

Confirm that the adapter matches the unit’s voltage, polarity and current requirements. Do not substitute an adapter simply because its connector fits.

Keep the correct adapter with the switch when moving or storing the equipment.

3. Position the Switch

Place it on a stable surface with room for ventilation and cable access.

For wall placement, follow the installation guide and use fixings suitable for the surface. Avoid moisture, excessive heat and locations where cables may be pulled accidentally.

For installation inside a cabinet, use a suitable shelf rather than assuming the unit includes rackmount brackets.

4. Connect Power

Connect the correct adapter to the switch and a suitable mains outlet. Check that the power indicator illuminates.

If backup operation matters, include the router and essential connected equipment in your power plan. Keeping only the switch powered will not preserve internet access if the router loses power.

5. Connect the Upstream Network

Connect a router LAN port or a correctly connected network wall outlet to an available switch port.

The router should already provide working internet access. In a typical home or small-office network, it also assigns addresses through DHCP.

The supplied MikroTik hEX PoE lite RB750UPr2 has 10/100Mbps Ethernet ports. An uplink to that router therefore has a maximum link speed of 100Mbps. Suitable devices communicating directly through the TL-SG1005D can still use Gigabit connections. cdn.mikrotik.com

For internet services above 100Mbps, assess a router with suitable Gigabit interfaces and routing performance.

6. Connect End Devices

Attach computers, printers, TVs or other Ethernet equipment to the remaining ports.

Devices requiring PoE need suitable separate injectors or a PoE switch. The TL-SG1005D does not distribute power from an upstream router to its other ports.

7. Confirm Addressing

Set computers to obtain addresses automatically where the router provides DHCP.

Use DHCP reservations or an appropriate static-address plan for equipment needing consistent addresses. Avoid duplicate IP addresses.

The switch does not require a management IP address for ordinary operation.

8. Check Connection Speeds

Inspect the negotiated speed in a connected computer’s network settings.

If a Gigabit-capable device connects at only 100Mbps:

1. Try a known-good Cat5e or Cat6 cable.
2. Inspect plugs and wall-outlet terminations.
3. Confirm that all four wire pairs are connected.
4. Check the adapter’s capabilities and settings.
5. Test another switch port.

Leave automatic negotiation enabled unless a specific troubleshooting requirement justifies a change.

9. Test Connectivity

Confirm that a computer can reach the router, access the internet and communicate with permitted local devices.

Use a local transfer between suitable endpoints when assessing LAN performance. Internet speed tests primarily measure the ISP service and upstream connection.

10. Avoid Cable Loops

Do not connect two switch ports directly together. Avoid adding duplicate paths between switches unless the network is designed to support them.

Use one planned uplink for a straightforward installation and label it clearly.

Advantages

• Gigabit connections: Suitable for many everyday home and office tasks.
• Simple setup: Requires little configuration for ordinary use.
• Compact format: Convenient for desks and entertainment areas.
• Quiet operation: Fanless cooling avoids fan noise.
• Flexible compatibility: Supports compatible older Ethernet devices.

Disadvantages

• Limited expansion: Four device ports remain after one uplink.
• No PoE: Cameras, phones and access points need separate power.
• No fibre interfaces: Direct SFP connections are unavailable.
• Limited management: No configurable VLANs or detailed monitoring interface.
• 1Gbps port ceiling: Faster devices cannot establish multi-gigabit links through it.
• Revision-dependent power requirements: Confirm the correct adapter.

For a larger group of devices, compare the TP-Link TL-SG1016D 16-Port Gigabit Switch.

Package Contents

TP-Link’s documentation lists:

• TL-SG1005D switch.
• Power adapter.
• Installation guide.

Confirm the supplied package, adapter rating and regional plug type. Ethernet cables and the router should be budgeted separately unless included in your quotation. static.tp-link.com

Frequently Asked Questions

Are all five ports Gigabit-capable?

Yes. They support 10/100/1000Mbps connections, subject to the connected equipment and cables.

Can I connect five devices alongside a router?

The router connection uses one port, leaving four for other equipment.

Does it provide Wi-Fi?

No. Wireless access requires a separate access point or wireless router.

Can it power an IP camera?

No. Use a suitable separate power supply, compatible injector or PoE switch.

Does it need software installation?

Normal switching does not require switch-management software.

Will a 100Mbps router limit local Gigabit transfers?

It limits traffic crossing the router uplink. Suitable devices connected directly to the switch can still communicate over Gigabit links.

Is the TL-SG1005D the same as the LS1005G?

No. They are separate models. Specify TL-SG1005D and confirm the hardware revision when ordering.

Order the TP-Link TL-SG1005D in Kenya

Expand connectivity for a small group of devices with the TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch from Network Switch Kenya.

Request a quotation confirming the hardware revision, adapter, warranty and delivery arrangements. Browse Network Switch Kenya for larger, managed and PoE alternatives.
