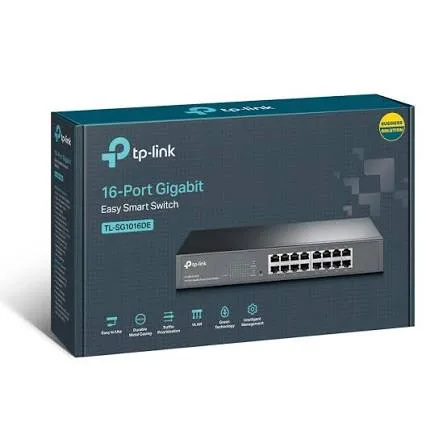

TP-Link TL-SG1016DE 16-Port Gigabit Smart Switch Price in Kenya

TP-Link TL-SG1016DE 16-Port Gigabit Smart Switch Price in Kenya

The TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch provides wired connectivity with practical management tools for small offices, schools, shops, and growing business networks. It suits installations that need more control than an unmanaged switch offers without moving to a complex enterprise switching platform.

Connect computers, network printers, storage devices, and separately powered access points, then configure how selected traffic moves through the network. Basic connectivity is straightforward, while its administration interface supports a more organized network design.

The TL-SG1016DE belongs to TP-Link’s Easy Smart range. It is different from the unmanaged TL-SG1016D, so confirm the complete model number when ordering.

Request the TP-Link TL-SG1016DE price in Kenya from Network Switch Kenya. Confirm the hardware revision, included accessories, and warranty terms before purchase.

Media link

Key Specification

The hardware specifications below follow TP-Link’s V7 datasheet. Earlier revisions may have different physical dimensions or power consumption.

SpecificationDetailsModelTP-Link TL-SG1016DEProduct categoryGigabit Easy Smart switchEthernet interfaces16 × 10/100/1000Mbps RJ45Port functionsAuto-negotiation and Auto MDI/MDIXSwitching capacity32GbpsPacket forwarding rate23.8MppsMAC address table8K entriesPacket buffer4.1MbitJumbo framesUp to 10KBPower input100–240V AC, 50/60HzMaximum power consumption, V7 datasheet10.27WCoolingFanlessDimensions, V7294 × 140 × 44mmInstallationDesktop or rackmountOperating temperature0–40°COperating humidity10–90%, non-condensingPoE outputNoneSFP/SFP+ interfacesNone

The switching-capacity figure describes aggregate capacity. It does not mean that one connected computer receives a 32Gbps connection. Datasheet

Smart Features That Support Better Network Organization

The TL-SG1016DE provides a web interface and compatible Easy Smart Configuration Utility. Its documented functions include VLANs, traffic prioritization, rate limiting, storm control, IGMP snooping, static link aggregation, port mirroring, cable diagnostics, and loop prevention.

V7 documentation specifies up to 32 simultaneous VLANs, with port-based, MTU, and tag-based options. TP-Link Indonesia

Separate Different Groups of Devices

A business may want staff computers, guest equipment, and surveillance devices on separate logical networks. A planned VLAN installation makes these groups easier to administer.

The router or firewall must support the corresponding network design. It normally provides DHCP services, routing, and security policies between those groups.

Manage Congestion More Deliberately

When backups, downloads, calls, and browsing share the network, traffic controls can help administrators decide how available capacity is used.

These settings should serve a clear purpose. They cannot create additional internet bandwidth or correct an overloaded router.

Investigate Connection Problems

Monitoring and diagnostic functions can help narrow down whether an issue involves cabling, a port, or traffic behavior.

This is useful in offices where replacing equipment without first identifying the fault would waste time and money.

Keep Administration Local

The Easy Smart approach suits organizations that want useful local controls. Do not assume that this model supports Omada Controller adoption or every function available on higher-tier managed switches.

How the TL-SG1016DE Is Used

Small and Medium Offices

Connect workstations, printers, and shared storage through a central switch. Label connections by desk or department so future changes are easier to trace.

One port normally connects to the router or upstream switch, leaving fifteen ports for local equipment.

Schools and Computer Labs

Use the switch for a group of computers accessing teaching resources, printers, or shared applications.

Before introducing separate student and staff networks, plan how the router will assign addresses and control access.

Retail and Hospitality

Connect administrative computers, checkout equipment, printers, and separately powered access points.

Payment systems should follow their service providers’ security requirements. A smart switch contributes to a network design but does not establish compliance by itself.

Surveillance Networks

The switch can carry traffic between compatible cameras, recording systems, and viewing stations. It does not power cameras, so they require separate adapters or suitable PoE equipment.

Important Buying Considerations

Choose the correct model. The TL-SG1016DE adds configurable functions that should not be assumed on the similarly named TL-SG1016D.

Allow for the upstream connection. A router connection uses one of the sixteen ports.

Plan endpoint power separately. Access points, cameras, and phones may need PoE or individual power supplies.

Consider future backbone requirements. This model has no optical expansion slots or dedicated high-speed uplinks.

Keep a suitable router. Internet access, firewall rules, VPN services, and routing remain separate requirements.

If straightforward connectivity is sufficient, compare the TP-Link TL-SG1016D 16-Port Gigabit Switch.

How to Set Up the TP-Link TL-SG1016DE

1. Prepare a Port and Address Plan

List the devices that will connect to the switch. Decide whether you need one ordinary LAN or separate VLANs.

An example allocation is:

PortsIntended use1Router or firewall connection2–9Staff workstations10–12Printers and shared equipment13–14Separately powered access points15Server or storage16Setup connection or spare

These are example assignments, not dedicated port roles.

Record the router’s LAN address, DHCP range, and any existing VLAN IDs before making changes.

2. Install the Switch

Place the unit indoors on a stable surface or secure it in a suitable rack using the correct accessories.

Keep ventilation openings clear and route cables without putting strain on the connectors. Connect the supplied power cord to an appropriate grounded outlet.

A suitable UPS can support continuity, provided the router and other essential equipment also receive backup power.

3. Establish Basic Connectivity

Connect a router LAN port to the switch, then attach a setup computer.

Verify that the computer can obtain its normal network settings and reach the internet or required local resources. Establishing this working baseline makes later troubleshooting easier.

Avoid duplicate connections between switches unless you have deliberately configured the network to handle them.

4. Locate the Management Address

Check the router’s DHCP client list or use TP-Link’s compatible discovery utility.

The address behavior depends on the hardware and firmware. Older documentation specifies 192.168.0.1, while DHCP settings can affect the address used.

If your revision’s guide specifies that default address:

1. Keep the switch isolated from any router using the same address.
2. Connect the setup computer directly.
3. Assign the computer an unused address such as 192.168.0.10.
4. Use subnet mask 255.255.255.0.
5. Open the documented switch address in a browser.

Follow the login procedure supplied for your revision rather than assuming every version uses identical credentials. static.tp-link.com

5. Secure Administrative Access

Create or change the administrator password immediately.

Assign a descriptive device name, such as Main-Office-Switch. Choose an appropriate management address or DHCP reservation so the device remains easy to find.

Keep access on a trusted network and record the address securely. Restore the setup computer’s normal addressing when direct configuration is complete.

6. Configure VLANs If Required

An example design might separate:

VLANPurpose10Staff devices20Guest equipment30Surveillance equipment

Configure the corresponding router interfaces, DHCP services, and firewall policies first.

On the switch:

1. Create the required VLAN IDs.
2. Assign endpoint ports to their intended VLANs.
3. Configure ordinary endpoint connections as untagged where appropriate.
4. Set each endpoint port’s PVID to match its intended untagged network.
5. Configure the upstream connection to carry the required tagged VLANs.
6. Remove unintended memberships where the design requires it.
7. Test one endpoint before applying the layout to all ports.

Keep a working management path available. Incorrect VLAN membership or PVID settings can disconnect devices.

7. Apply Traffic Controls Carefully

Start with a measurable goal, such as limiting a guest connection or prioritizing approved voice traffic.

Change one setting at a time, then compare behavior before and after. Aggressive limits or storm-control thresholds can disrupt legitimate applications.

If using static link aggregation, configure both connected devices consistently before adding the extra cables. Do not assume that static aggregation is interchangeable with LACP.

8. Save and Back Up

Apply changes using the procedure documented for the installed firmware. Export a backup and retain a record of the port assignments.

During a maintenance window, verify that the configuration remains after a restart.

Use only firmware matching the exact model, hardware revision, and regional requirements. Maintain stable power during an update.

The manufacturer’s guide documents configuration backup, VLAN/PVID settings, monitoring, and firmware administration; menu layouts can differ between versions. static.tp-link.com

Troubleshooting

ProblemWhat to checkNo link indicatorEndpoint power, cable seating, another cable, and another portConnection operates at 100MbpsCable pairs, termination, and endpoint capabilityManagement interface does not openCurrent address, computer subnet, DHCP leases, and address conflictsDevice loses access after VLAN changesVLAN membership, PVID, upstream tagging, and router configurationCamera or access point receives no powerSeparate compatible power sourceInternet remains slowISP service, router performance, congestion, and endpoint loadUnexpected disconnections after traffic-policy changesRate limits, storm-control thresholds, and recent settingsSettings disappear after restartRequired saving procedure and available backup

Advantages

• Provides more control than an ordinary unmanaged switch.
• Suitable for organizing a small business network.
• Offers useful tools for investigating connection problems.
• Accommodates a workgroup through one central device.
• Supports local administration.
• Fits desktop and rack-based installations.

Disadvantages

• Does not supply PoE power.
• Has no optical or 10G uplink interfaces.
• Advanced configuration requires networking knowledge.
• Offers fewer capabilities than higher-tier managed platforms.
• A busy upstream connection can become a bottleneck.
• Hardware revisions must be checked when comparing specifications.

Compare Related Networking Equipment

Unmanaged Gigabit Alternatives

For simpler installations, compare the TL-SG1016D at Orbitlink and Orbitlink’s 16-port Gigabit switch listing.

Other options include the D-Link DGS-1016D, D-Link DGS-1016C, TP-Link TL-SG1016 at Tawa, and TL-SG1016D at Tawa.

You can also review the TL-SG1016 at Reisen SEO and TL-SG1016D at Reisen SEO. Confirm whether their management capabilities match your requirements.

Fast Ethernet Options

For legacy networks, investigate the TL-SF1016D at Orbitlink, Orbitlink’s 16-port Fast Ethernet listing, and the TL-SF1016D at Tawa.

Additional listings include the TP-Link 16-port 10/100Mbps switch, TL-SF1016D at Reisen SEO, and D-Link DES-1016D. Consider the connection-speed limits before selecting these for large transfers.

PoE and UniFi Options

If endpoints need Ethernet power, review the UniFi Lite 16 PoE, Orbitlink USW-Lite-16-PoE listing, and Tawa USW-Lite-16-PoE listing.

For other configurations, compare the UniFi Pro Max 16, Pro Max 16 PoE, and USW-16-PoE. Check powered-port counts, power budgets, and management requirements separately.

Surveillance-oriented options include the D-Link DES-F1016P-E/B at Tawa and DES-F1016P-E/B at Reisen SEO. Verify the exact model behind Reisen SEO’s D-Link 16-port managed PoE listing before comparing its specifications.

Specialized Backbone Equipment

For higher-speed aggregation, investigate the UniFi Switch 16 XG or MikroTik CRS309-1G-8S+IN.

The Huawei MA5683T GPON OLT serves a specialized fiber-access role and should be assessed separately from an office Ethernet switch.

Package and Accessories

Confirm that your order contains the correct revision, power cord, installation documentation, and applicable mounting accessories.

Plan separately for patch cables, structured cabling, labels, a patch panel, and backup power where required. Optical modules are not applicable because this model has no SFP slots.

Frequently Asked Questions

Does the TL-SG1016DE provide PoE?
No. Connected equipment needs separate power or suitable PoE equipment.

How does it differ from the TL-SG1016D?
The TL-SG1016DE provides Easy Smart configuration functions. The similarly named unmanaged model is intended for simpler connectivity.

Can it replace my router?
No. Keep an appropriate router or firewall for internet access and routing services.

Does it provide Wi-Fi?
No. Connect a separately powered wireless access point.

Can I configure VLANs?
Yes, with a compatible router and a correctly planned configuration.

Does it increase internet speed?
It does not increase your subscription speed. Its benefit depends on the capabilities and limitations of the existing network.

What is the price in Kenya?
Request a current quotation from Network Switch Kenya, including the required quantity and any installation accessories.

Buy from Network Switch Kenya

Choose the TP-Link TL-SG1016DE when your workgroup needs practical switching controls, organized connectivity, and local administration.

Visit Network Switch Kenya for pricing and product selection assistance.
